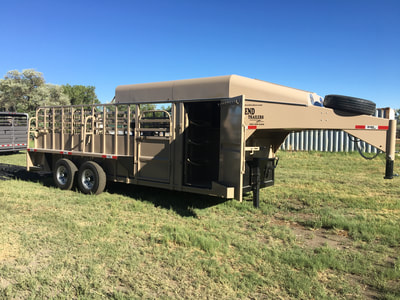

BIG BEND Trailers

We are excited to carry BIG BEND Trailers. These trailer are top of the line, heavy duty and built for whatever you can throw at it. We are currently taking custom orders, so call today for pricing and availability!!

Check out our Big Bend Inventory! Custom order yours today!!

These options are all standard on your Big Bend Trailer!

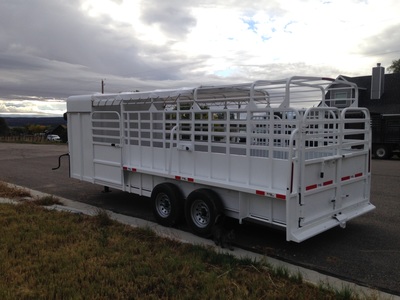

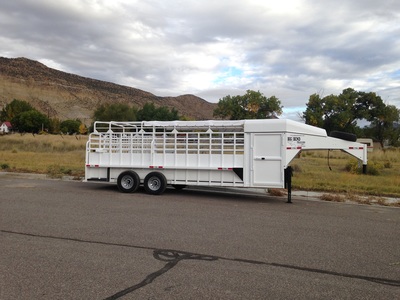

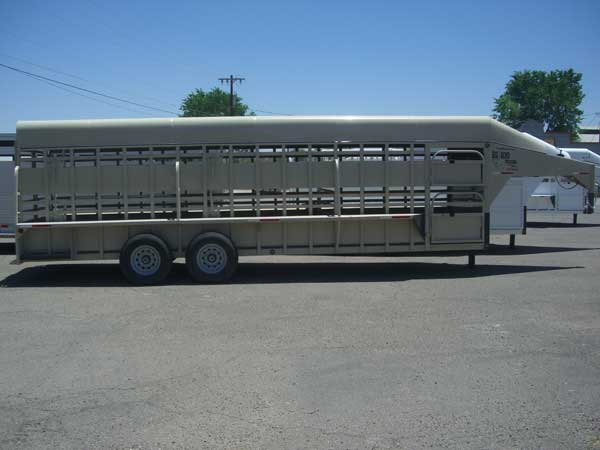

Big Bend Trailer Standard Features

Lengths from 16' - 40' and widths from 5' - 8'. Axles come in single, double or triple. We can also build a 6' wide trailer on 5' wide axles, a 6'8" wide trailer on a 6' wide axles and a 7' wide trailer on 6'8" wide axles (all of these will have a fender on the inside of the trailer).
Available in full top, half top, or bow top
All trailers less than 28' long will come with a receiver hitch on the back of your trailer.

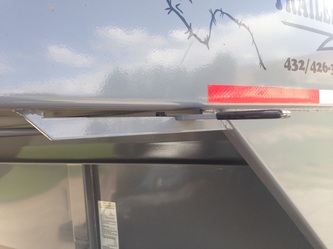

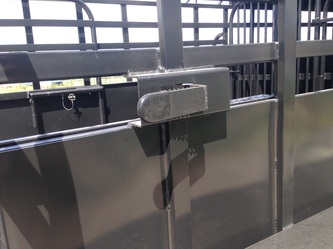

Unique design for uncoupling of trailer latch from outside truck bed (no more climbing over & around the truck bed to unhook)

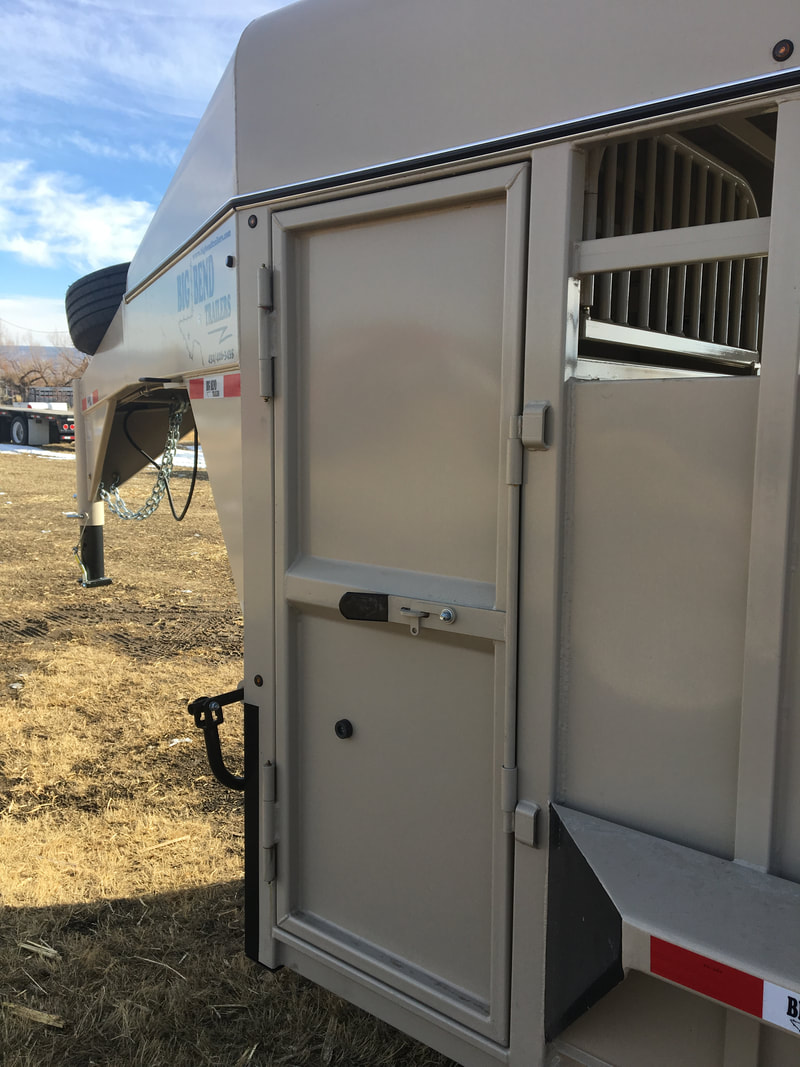

3' access gate on front passenger side of trailer

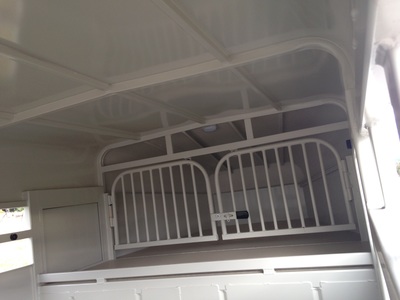

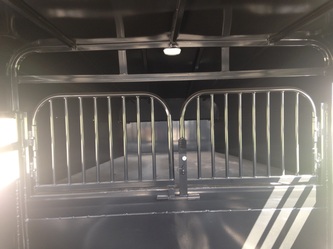

2 small swinging calf gates in the nose that can be locked

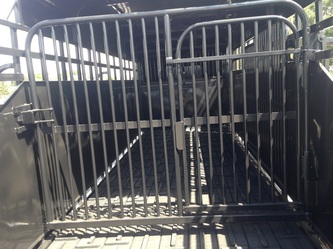

All center gates come with a sorting gate; center gates are supported when open or shut.

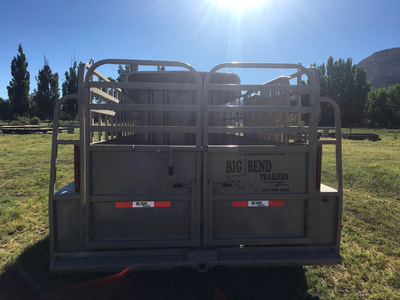

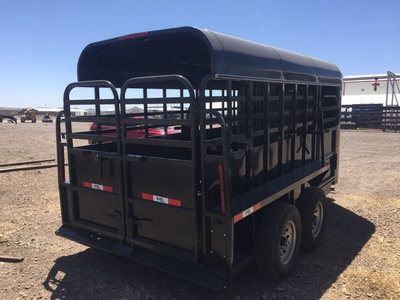

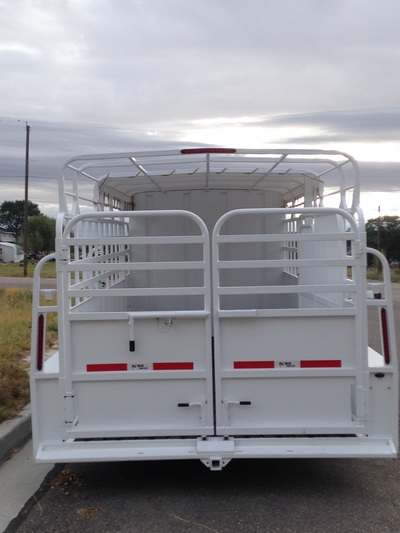

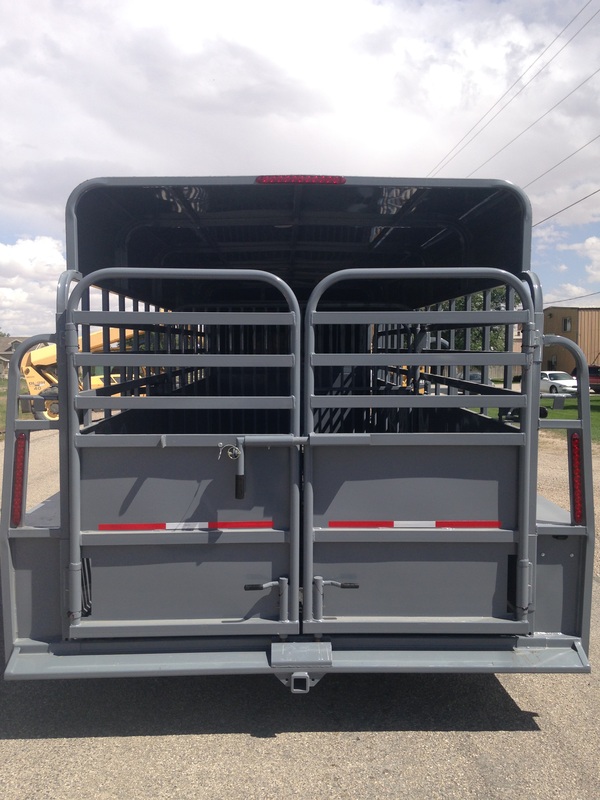

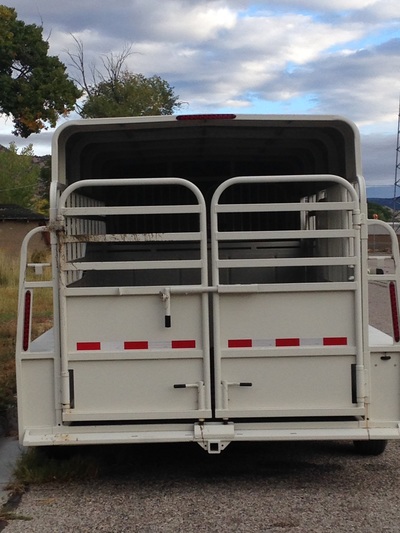

Rear butterfly gates can be slammed shut so heavy spring loaded pins on bottom of gate latch automatically into trailer frame.Rear gates can also be latched open to drag a critter into the trailer

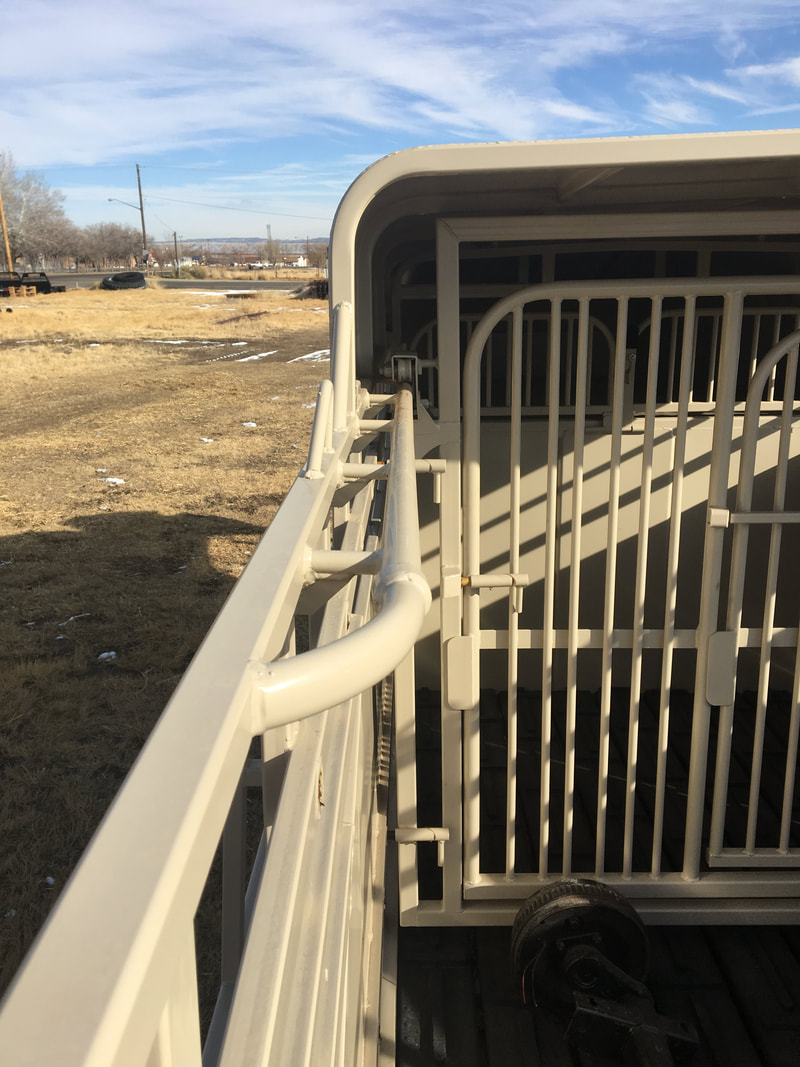

On our 1/2 & 3/4 top trailers, the top rail has four lazy L's welded so a rope can be flipped over it to drag cattle into back of trailer

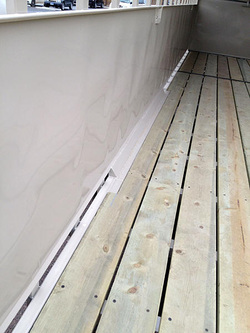

Exclusive non-rusting gap design on bottom for easy clean out

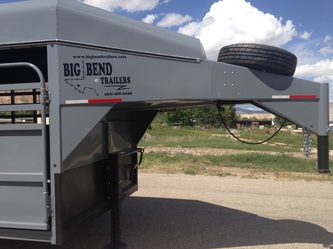

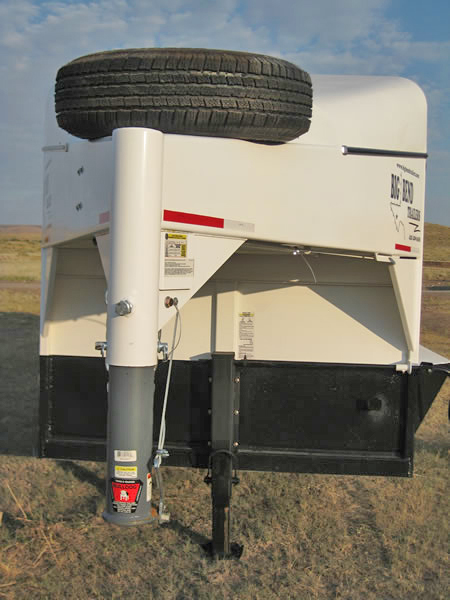

Wind resistant aerodynamic nose design makes trailer pull like it's not there
Bottom frame of trailer is built with 2 X 4 rectangle tubing and is much stronger than the normal gooseneck that uses angle-iron
Sides are built with solid steel and rectangle tubing so there are no places for water and manure to accumulate and rust out
Runners under floor are 2.5" X 2.5" square tubing welded solidly into the frame, no angle iron is used in the frame
7000 lb EZ lube rubber torsion axles
16" 10 ply (14 ply available) steel radial tires (load range E) with heavy duty 8 hole steel rims & lockable nose mounted spare
No exposed wires for brush country
Interior Dome Lights

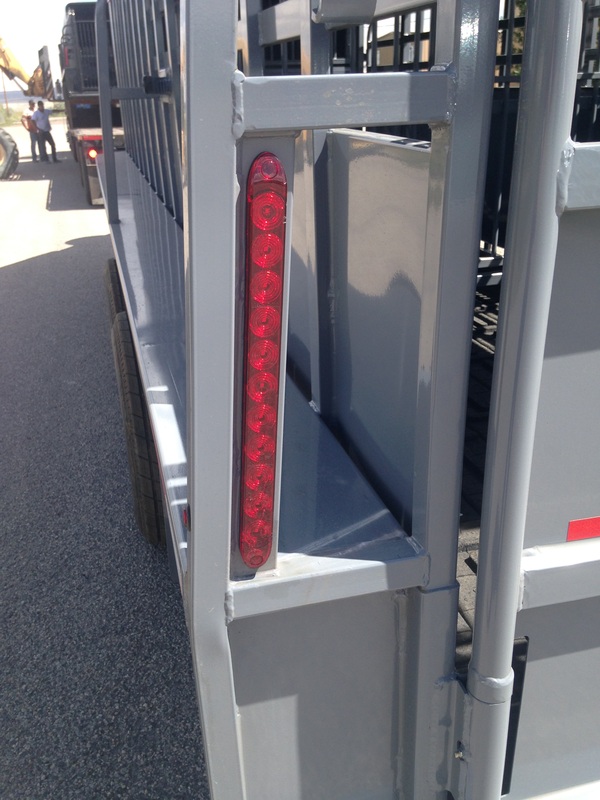

Trailers come with LED lights and powder coated paint
Front bottom and front of brush fender is Rhino lined to prevent rocks from chipping paint

Available Options:

Swing slider on center or rear gate
Access gate on drive side

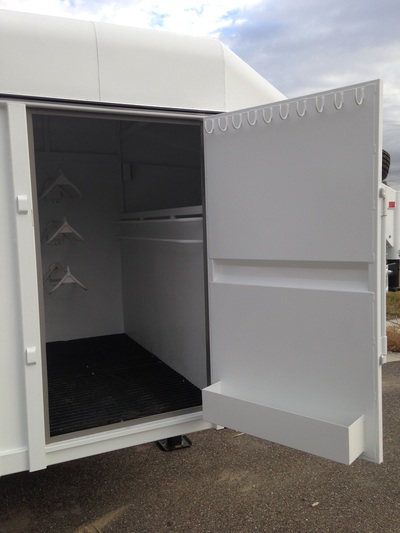

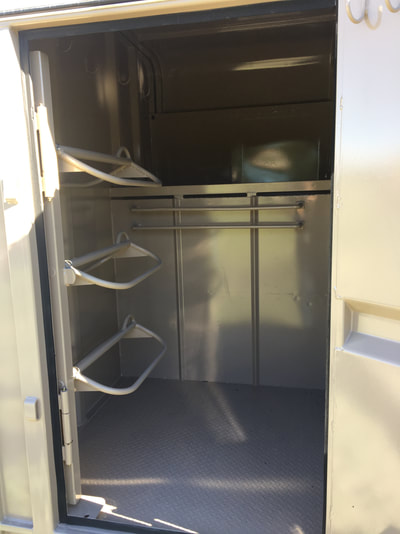

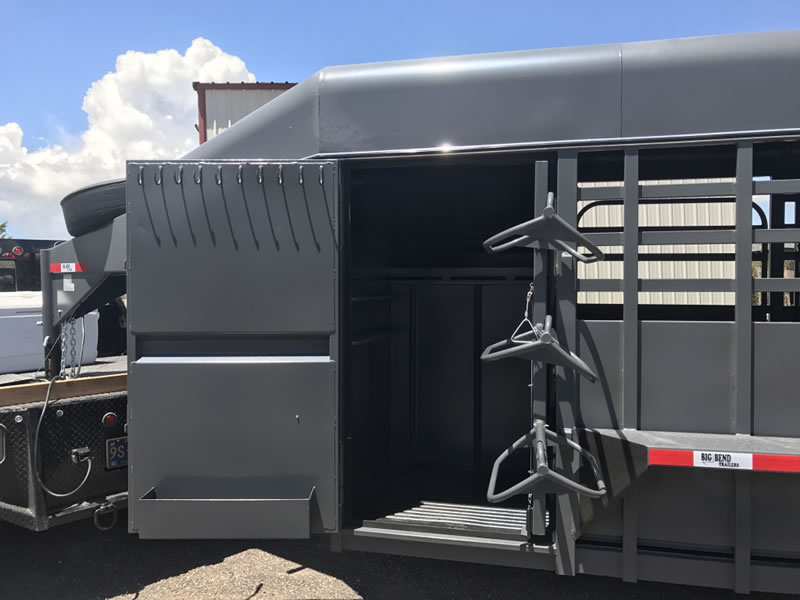

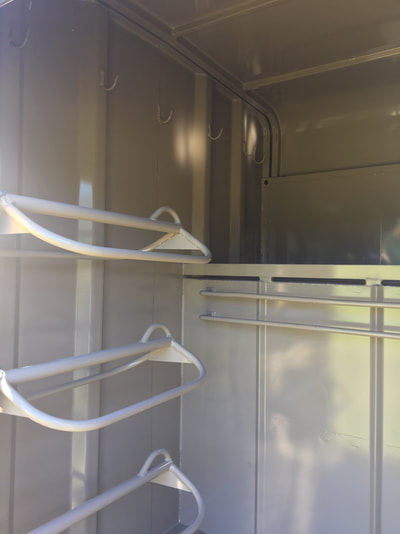

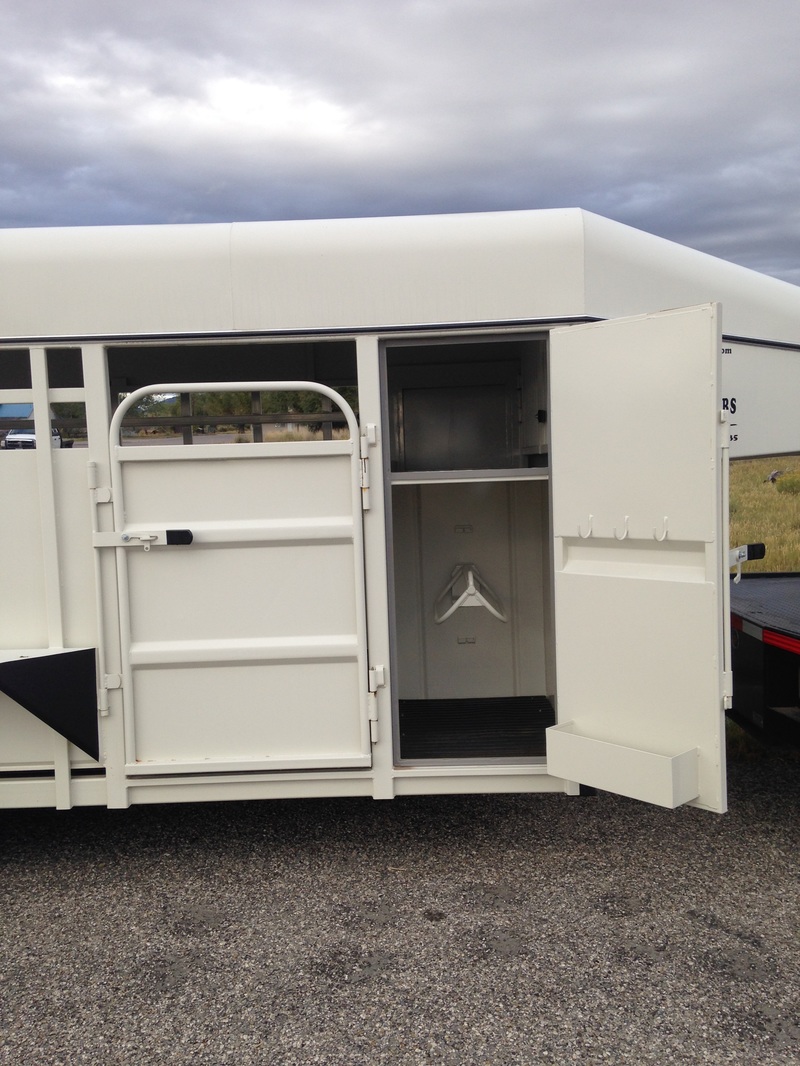

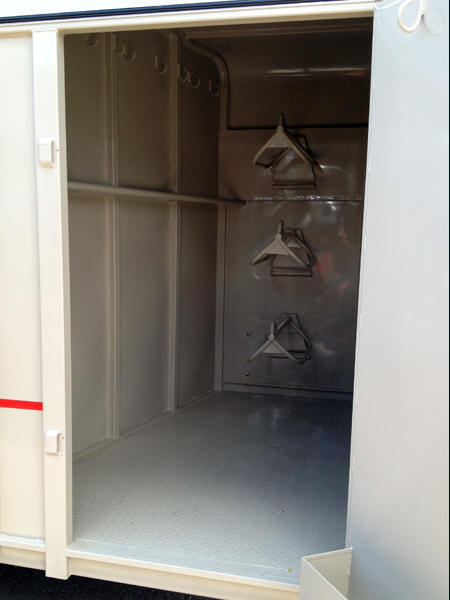

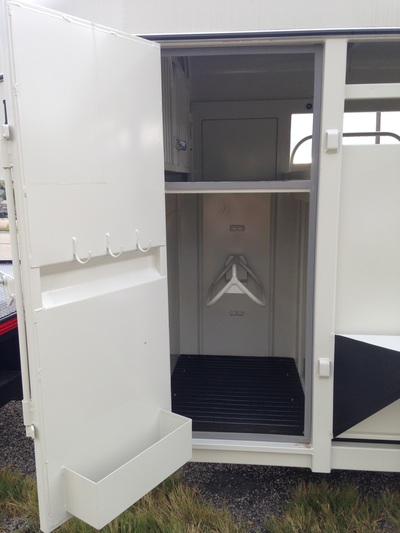

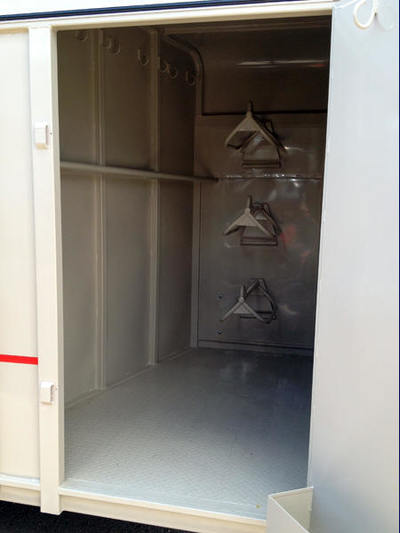

3' tack room

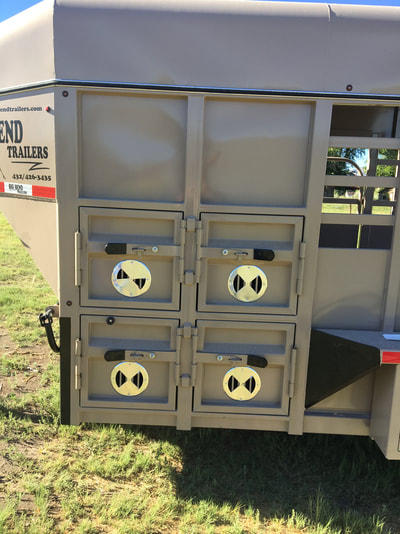

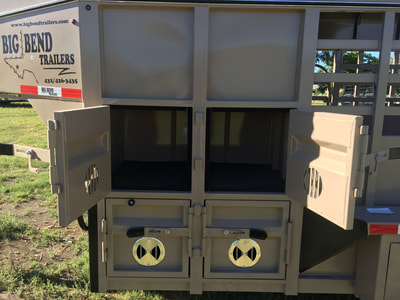

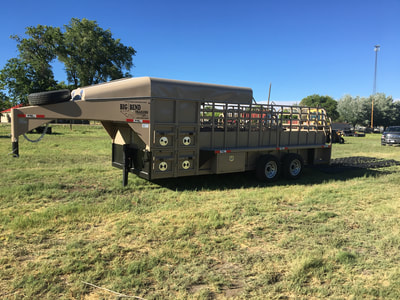

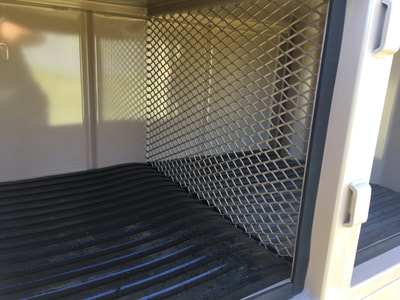

Dog/Saddle Boxes
4' high sides
Roller pin option for rough country where your trailer may drag bottom

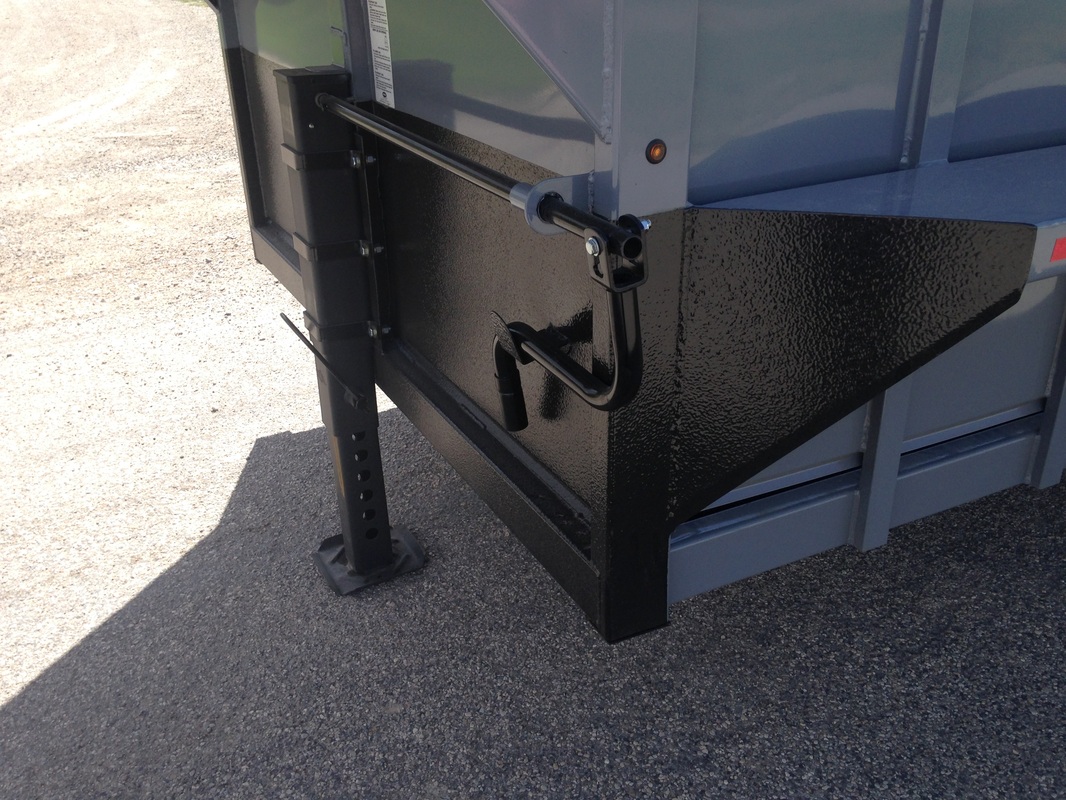

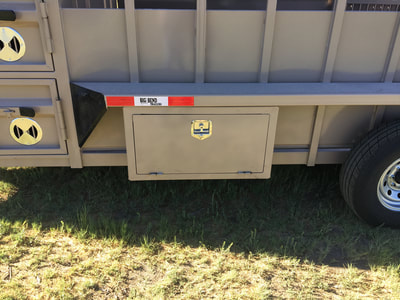

Tool box that fits under the brush fender
Customization for hauling a 4 wheeler
Sheep & Goat Customization

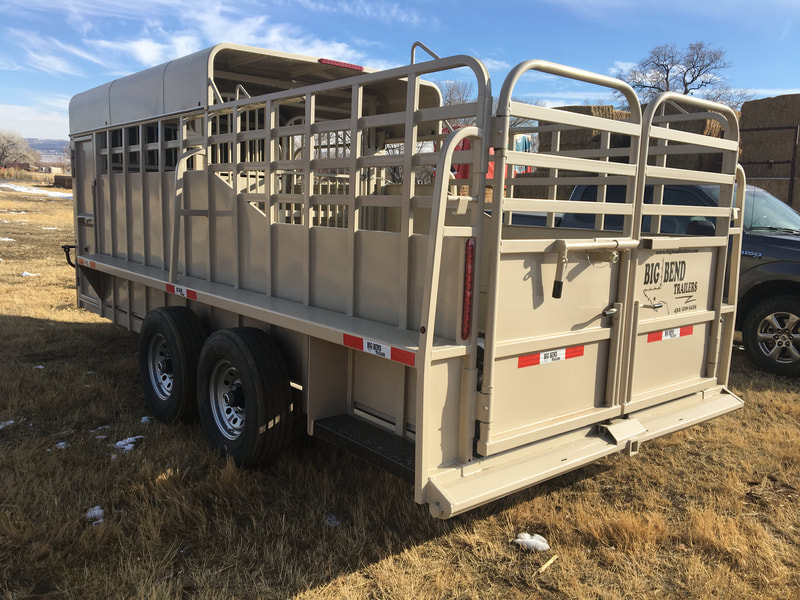

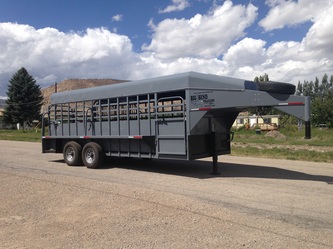

PHOTO GALLERY

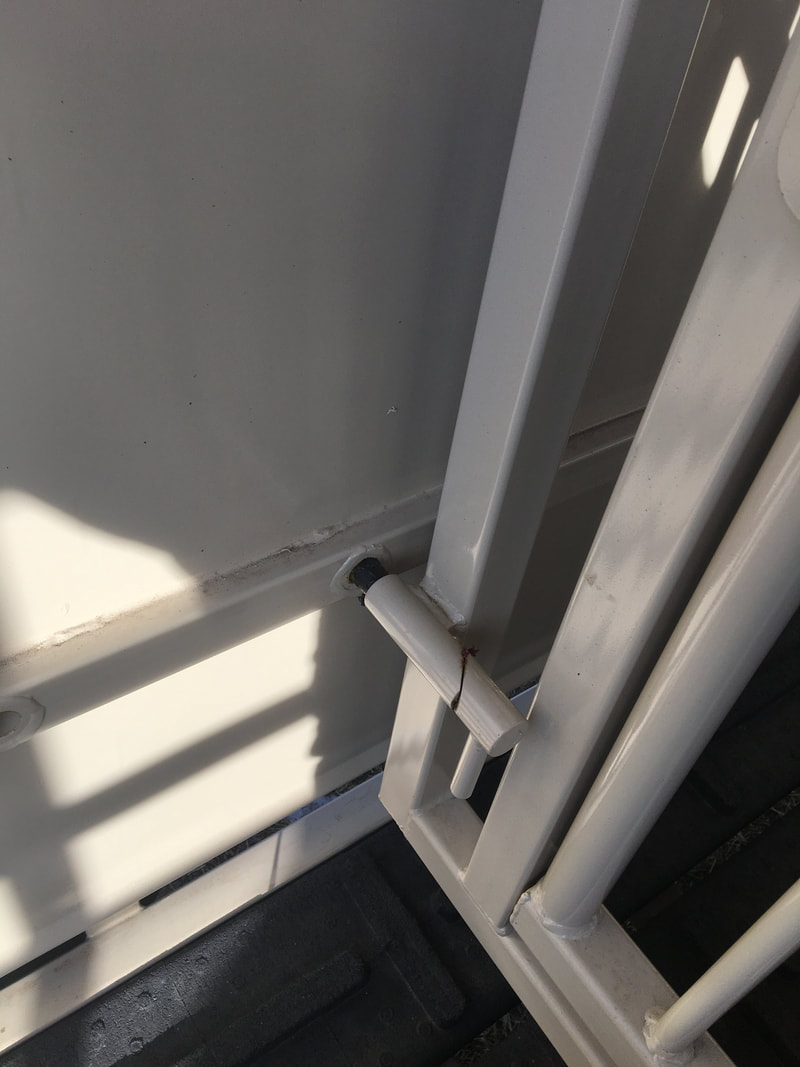

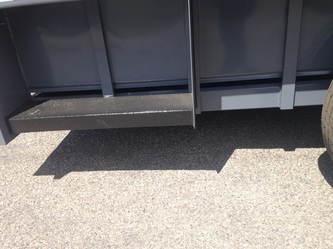

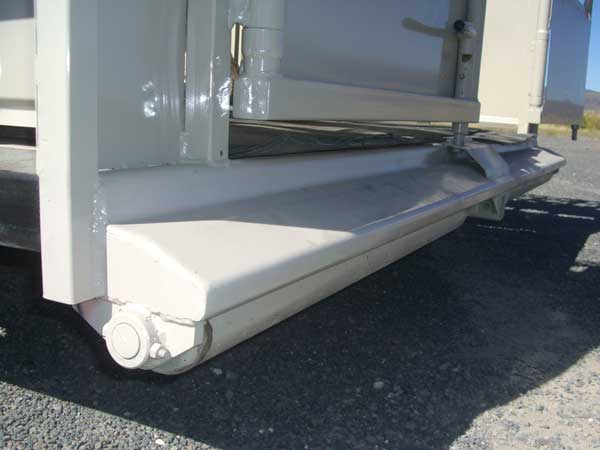

roller pins

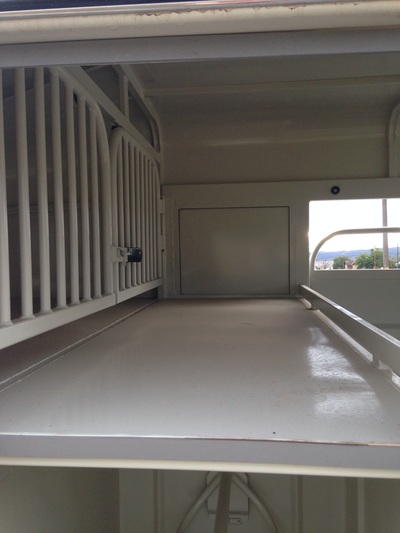

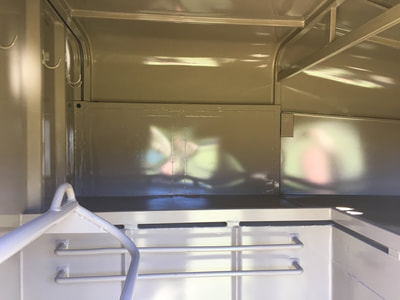

Saddle Box

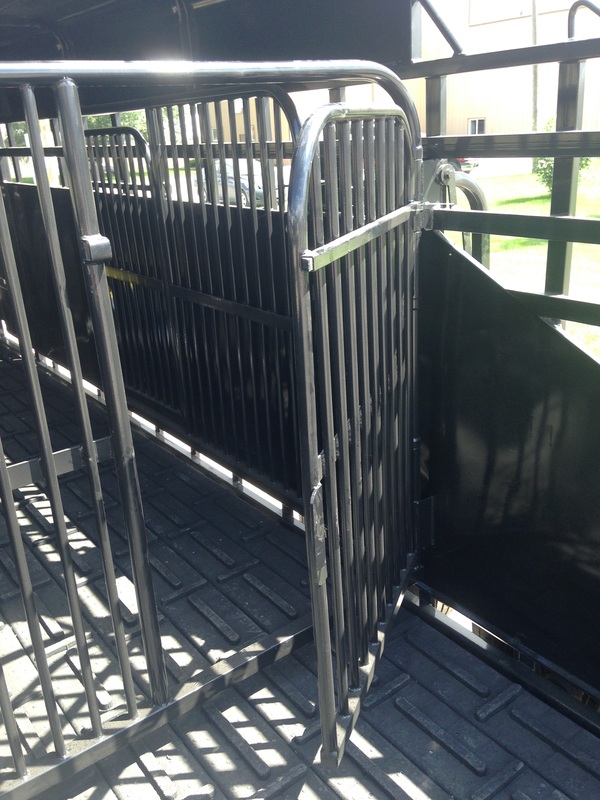

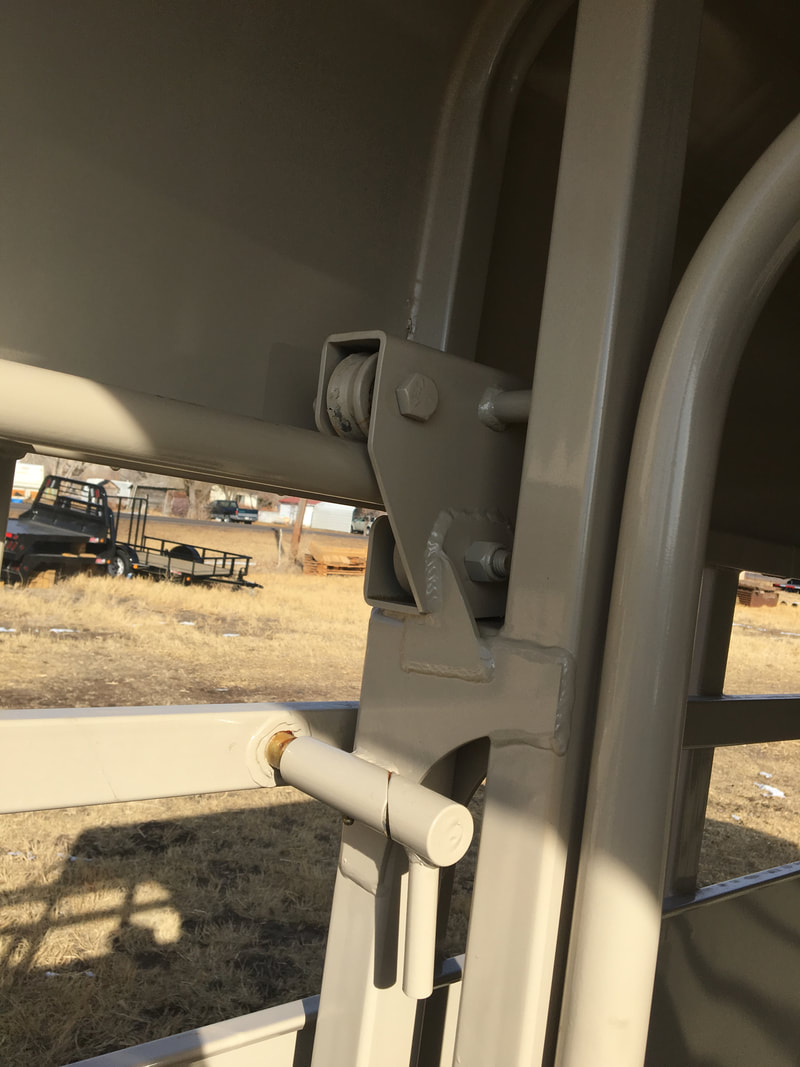

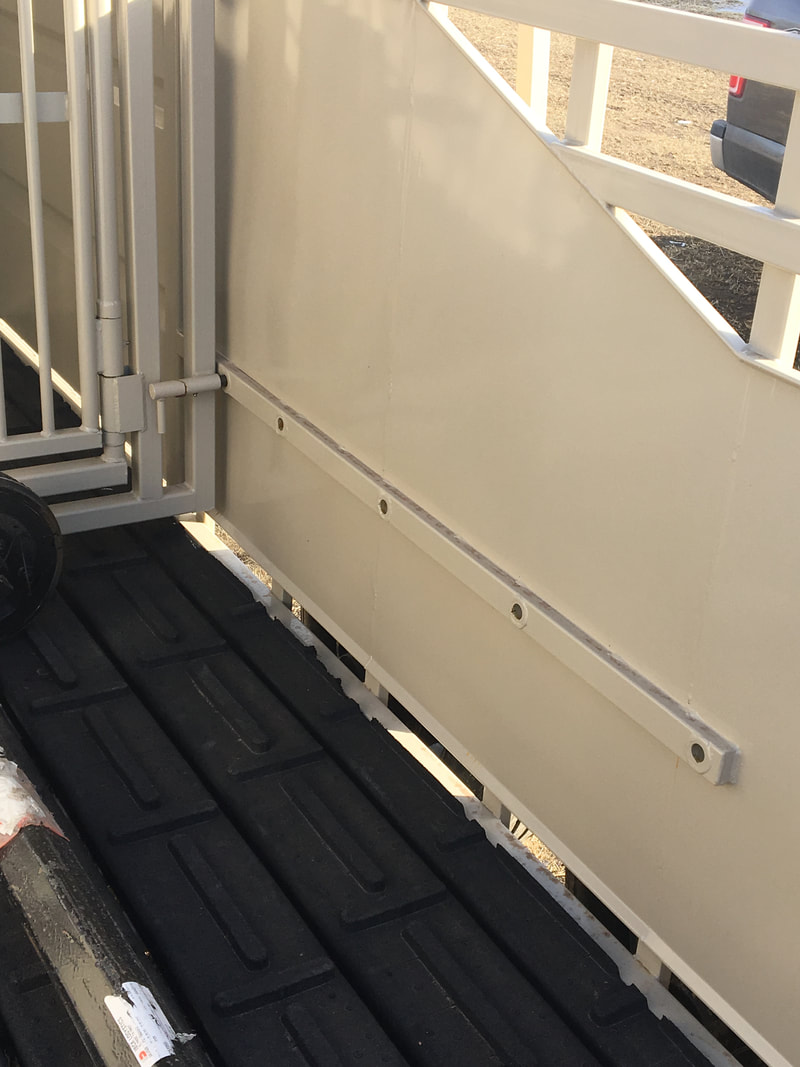

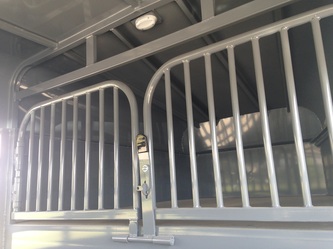

Floating Gate assembly
